Trek

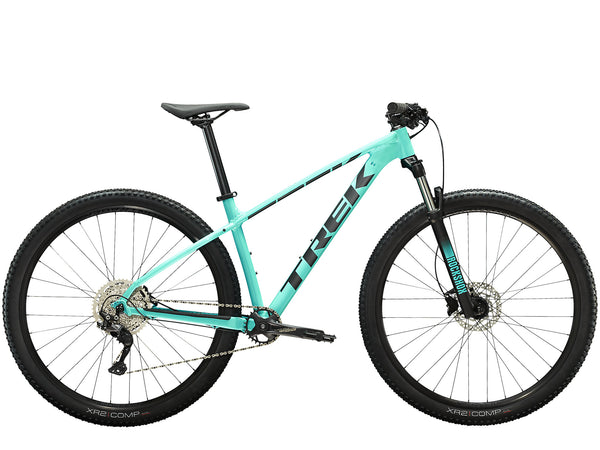

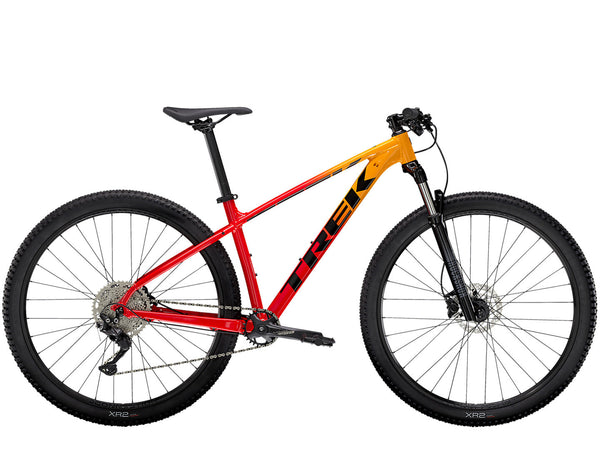

2022 Marlin 7
Regular price
₱40,990.00
Marlin 7 is where race-worthy mountain bikes begin. The smooth, lightweight RockShox fork and upgraded parts make this model the best choice for new riders who want a fast cross country hardtail that will hold its own against our higher-end race bikes.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|
| *Fork | Size: XS RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
| Size: S RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
| Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve |
| Spokes | 14g stainless steel |
| *Tire | Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' |
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' |
|
| Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|

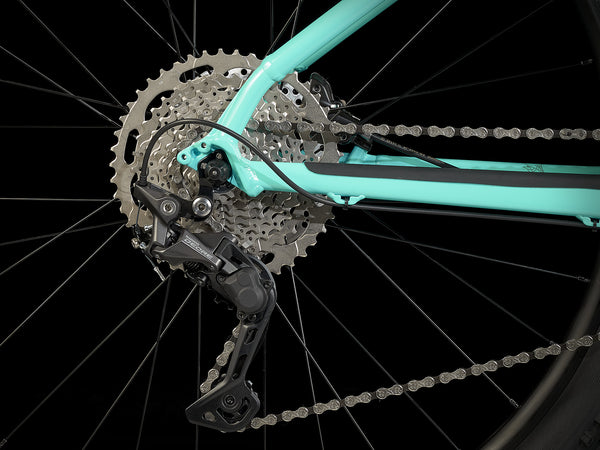

| Rear derailleur | Shimano Deore M5120, long cage |

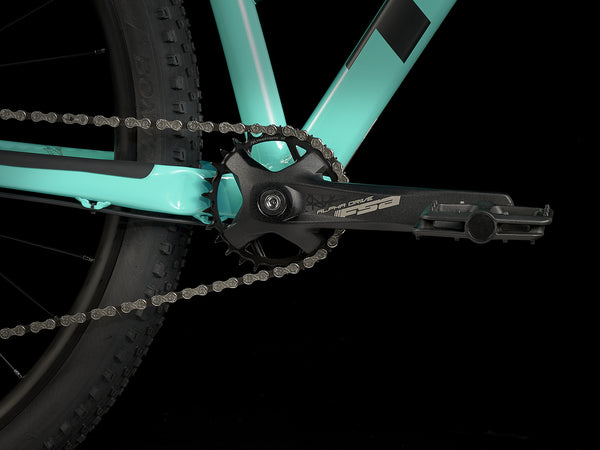

| *Crank | Size: XS , S , M FSA Alpha Drive, 28T steel ring, Boost, 170mm length |
| Size: ML , L , XL , XXL FSA Alpha Drive, 28T steel ring, Boost, 175mm length |
|
| Bottom bracket | FSA, 73mm, threaded cartridge, 122.5mm spindle |
| Cassette | Shimano Deore M4100, 11-46, 10 speed |
| Chain | KMC X10, 10 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Headset | Semi-integrated, 1-1/8'' |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160mm |
| Size: L , XL , XXL Shimano RT26, 6-bolt,180mm |
