Trek

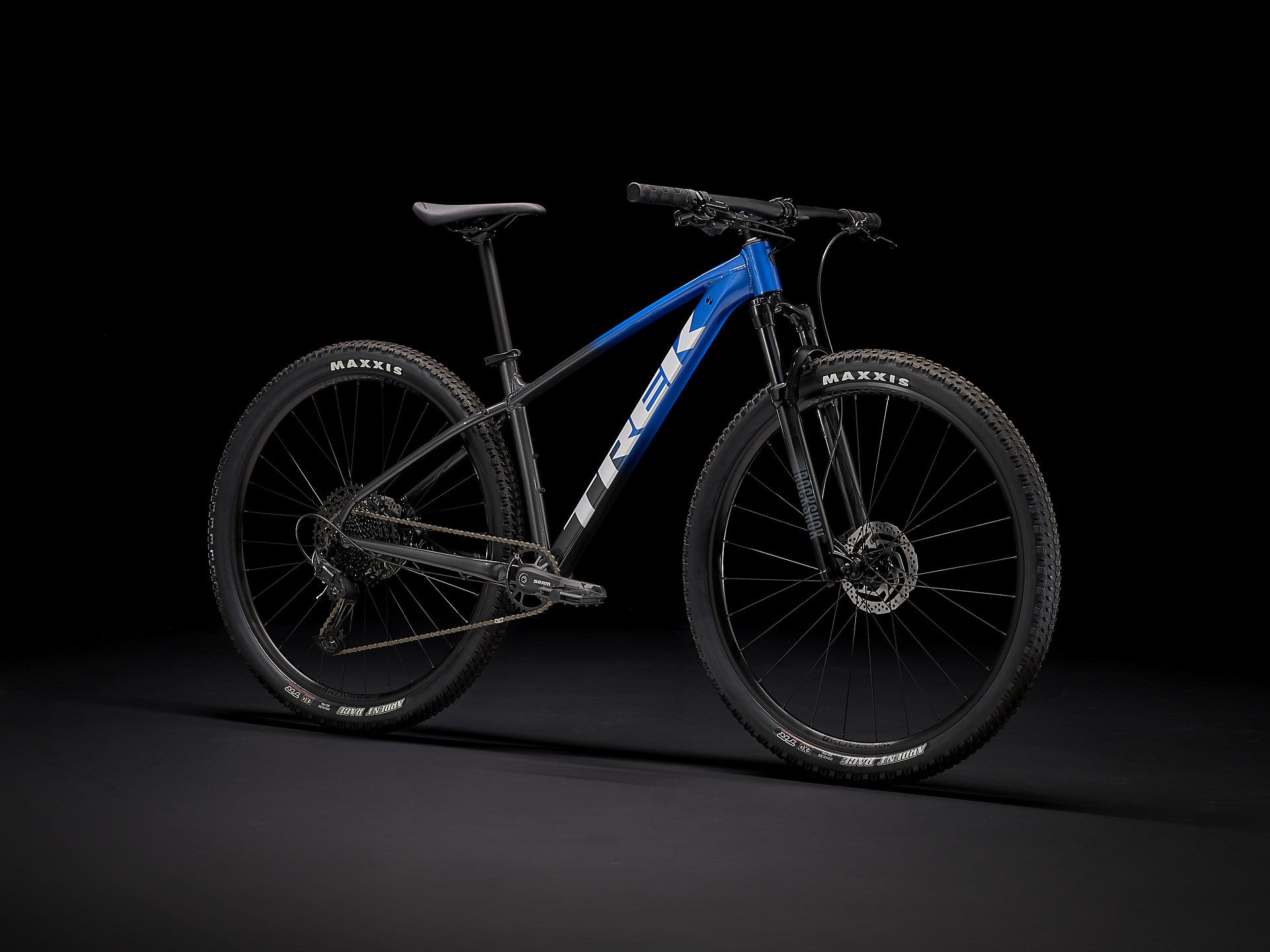

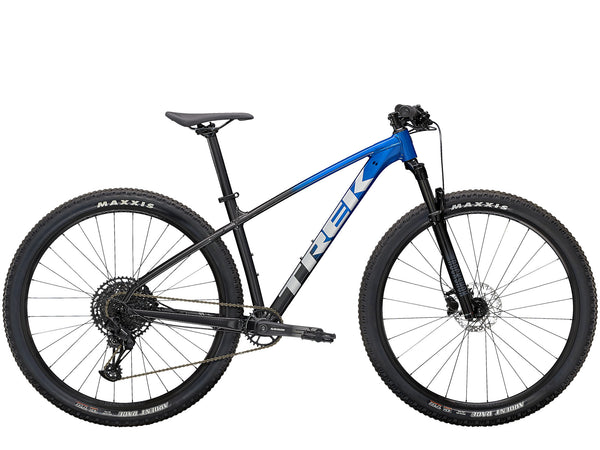

2022 Marlin 8
Regular price
₱56,990.00

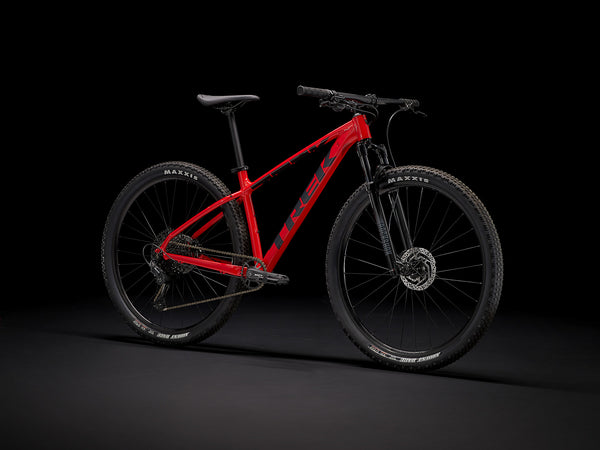

Marlin 8 is a race-worthy mountain bike that won’t break the bank. The smooth, lightweight RockShox fork, tubeless ready wheels, and wide-range 1x drivetrain make this model the best choice for new riders who want a fast cross country hardtail that will hold its own against our higher-end race bikes.
Product Specifications
Frameset

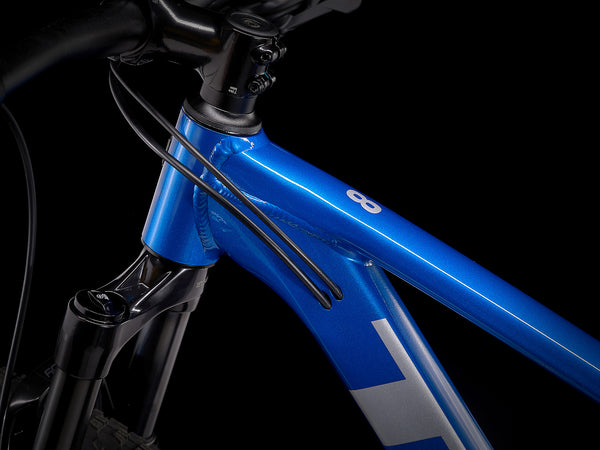

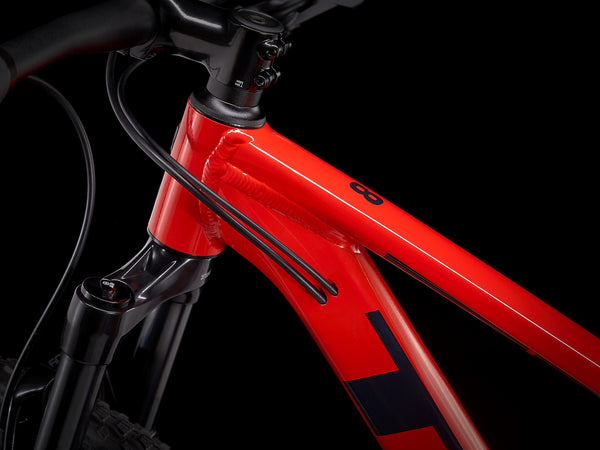

| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|

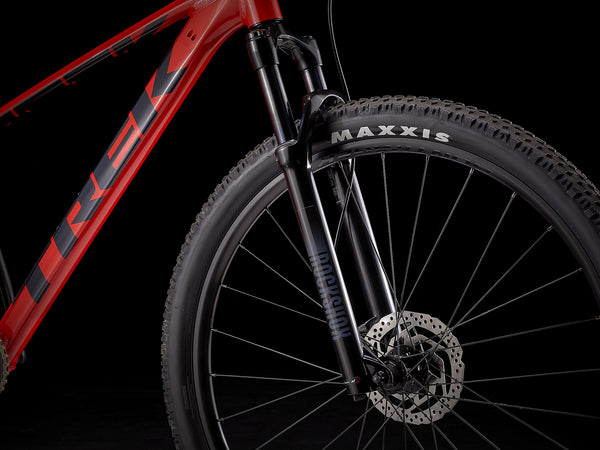

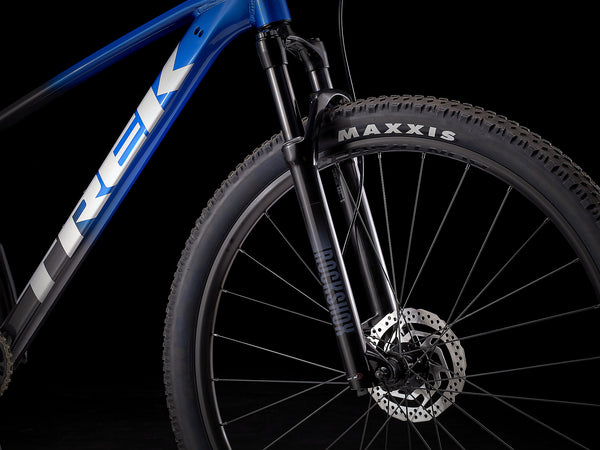

| Fork | Size: XXS , XS RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 80mm travel |
| Size: S , M , ML , L , XL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Wheels
| Hub front | Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |

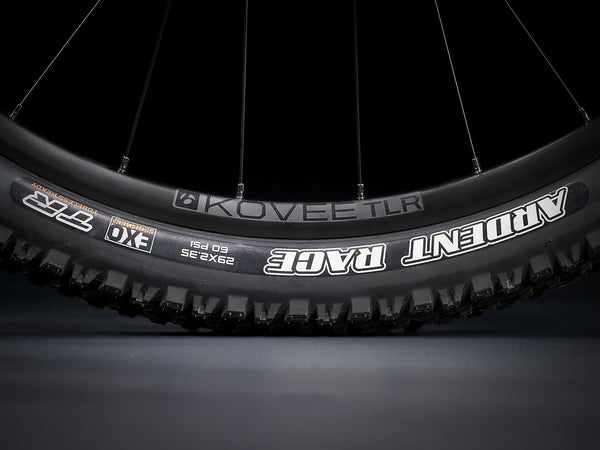

| Rim | Size: XXS , XS , S , M , ML , L , XL Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve |
| Size: M , ML , L , XL Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
|
| Spokes | 14g stainless steel |
| Tire | Size: XXS Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 26x2.40'' |
| Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35'' |
|
| Size: M , ML , L , XL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |
|
| Size: M , ML , L , XL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.20'' |
|
| Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
Drivetrain
| Shifter | SRAM SX Eagle, 12 speed |
|---|---|

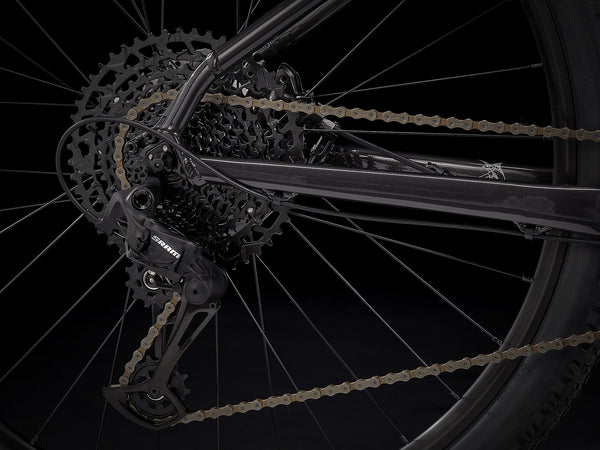

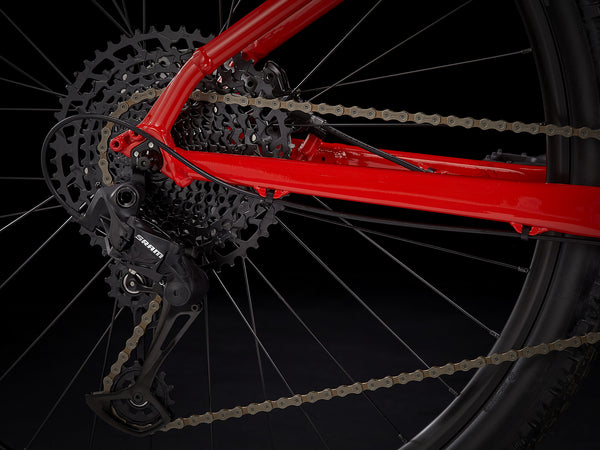

| Rear derailleur | SRAM SX Eagle |

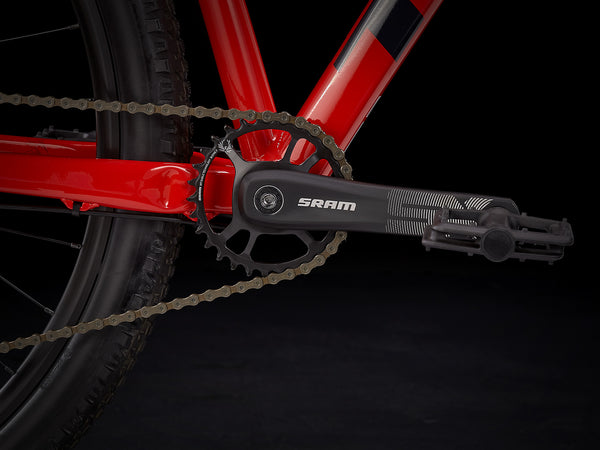

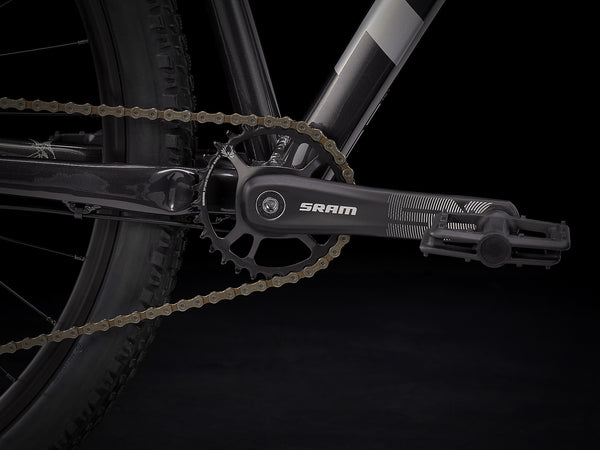

| Crank | Size: XXS SRAM SX Eagle, 30T steel ring (49mm chainline), 155mm length |
| Size: XS , S , M SRAM SX Eagle, 30T steel ring (49mm chainline), 170mm length |
|
| Size: ML , L , XL SRAM SX Eagle, 30T steel ring (49mm chainline), 175mm length |
|
| Bottom bracket | Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
| Chain | SRAM SX Eagle, 12 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| Seatpost | Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
| Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
| Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|

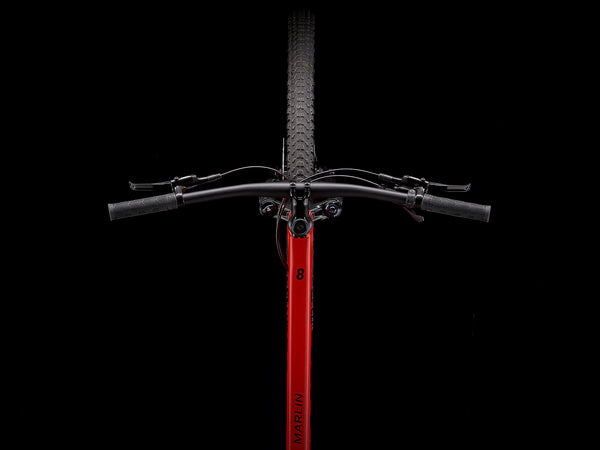

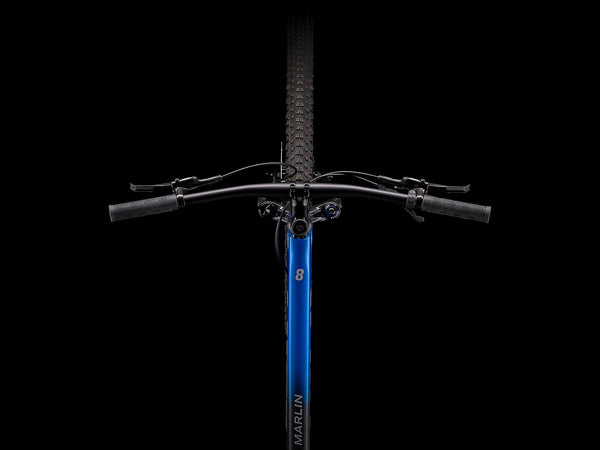

| Handlebar | Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S , M , ML , L , XL Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length |
| Size: XXS , XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
| Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: XL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Headset | Semi-integrated, 1-1/8'' |

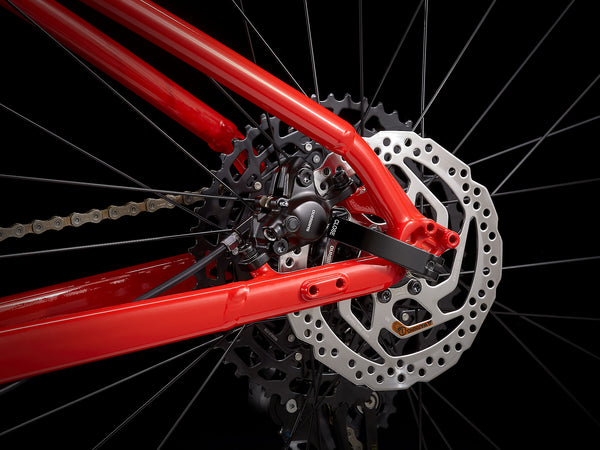

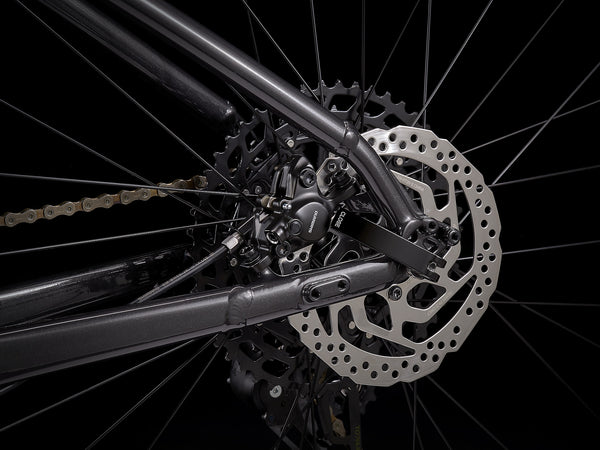

| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Size: XXS , XS , S , M , ML , L , XL Shimano RT26, 6-bolt,160mm |
| Size: L , XL Shimano RT26, 6-bolt,180mm |
