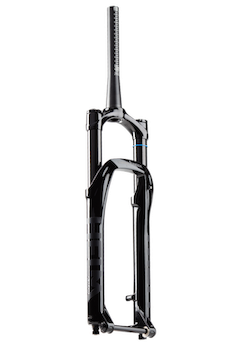

Fork Helm MKII AIR 29
The Helm MKII is our first major revision of the Helm fork lineup and improves on its predecessor in nearly every way.
The Helm MKII includes a newly designed damper featuring a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight damper oil reduce friction and provide a more supple ride-feel.
All forks are built to order by hand in our facility in North Carolina, USA.
Product Specifications
|
Weight |
2080 grams |
|
Damping |

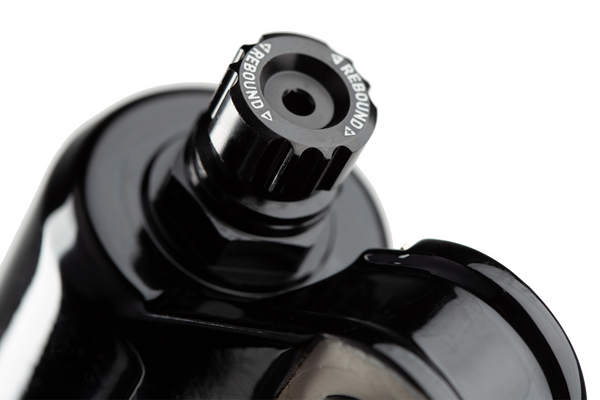

High Speed Compression, Low Speed Compression, Low Speed Rebound |
|
Adjustments |

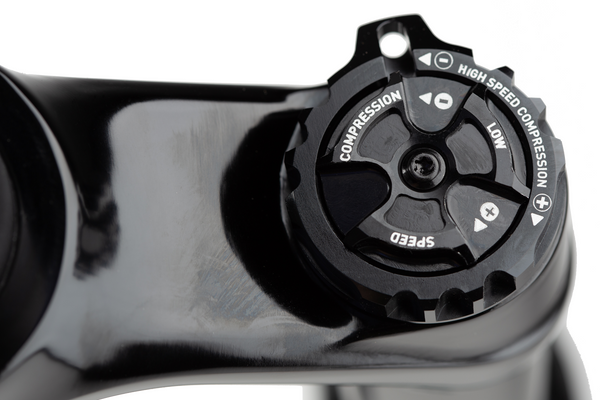

High speed compression (10 positions) |
|
Spring |

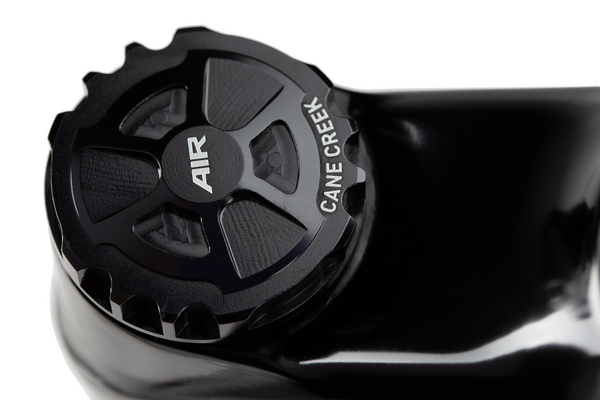

Double-Air spring system. High volume positive and negative air springs |
|
Stanchion Diameter |
35mm |
|
Minimum Brake Rotor Size |
180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter. |
|
Travel |
Optimized for 130-160mm of travel |
|
Travel Adjustments |
Internal, 10mm Increments (160mm down to 130mm) 2 Travel spacers included |
|
AXLE / SPACING / OFFSET |

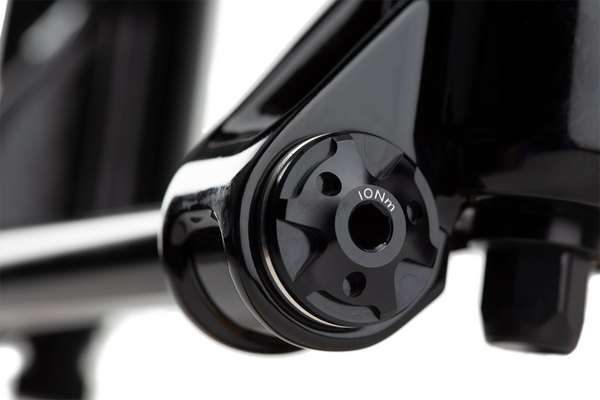

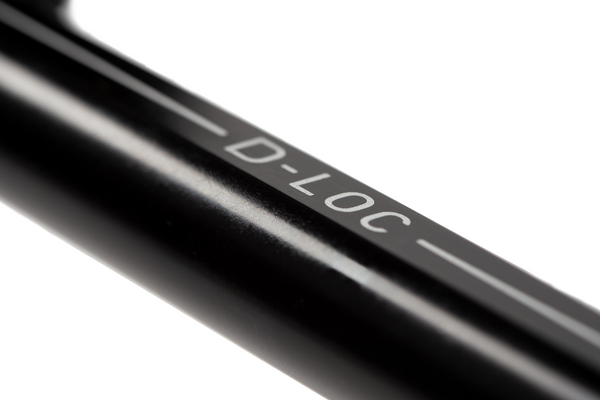

"D-Loc" 15mm Bolt-on thru axle / 15mm x 110 BOOST spacing / 51mm and 44mm |
|
Max Tire Size |
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+) |
|
Color |
Gloss Black |
