Trek

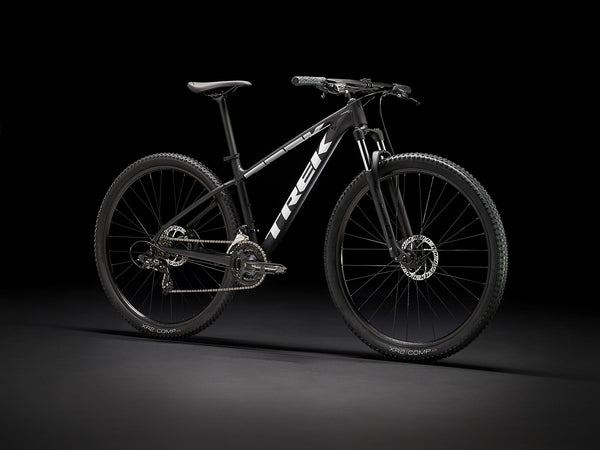

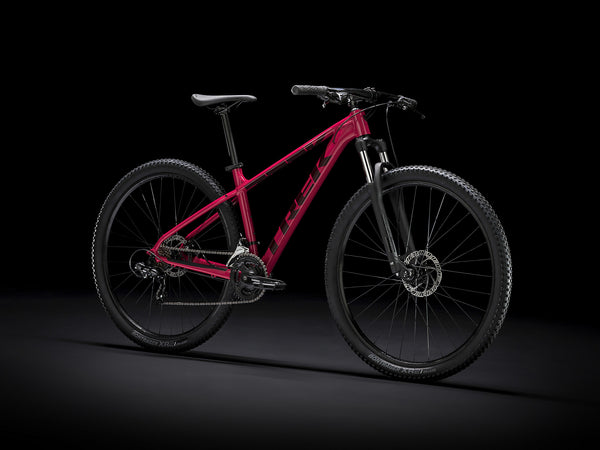

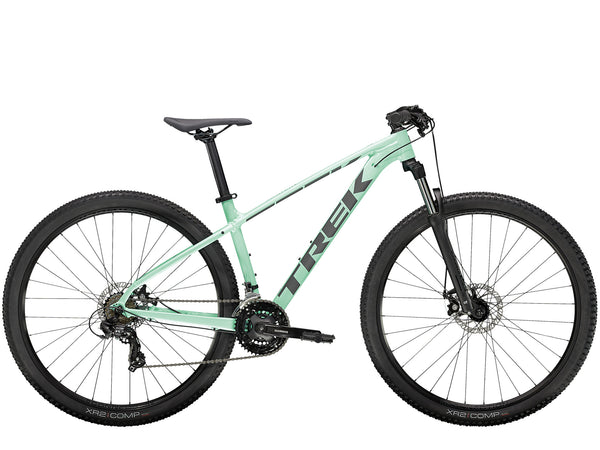

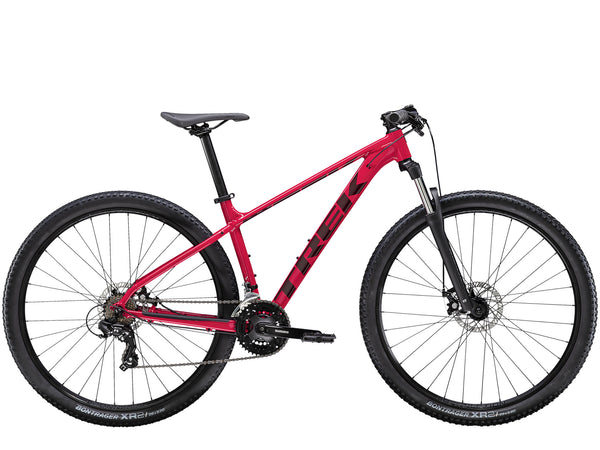

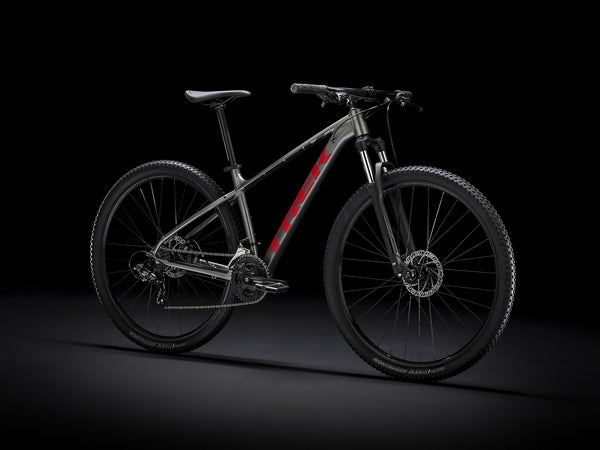

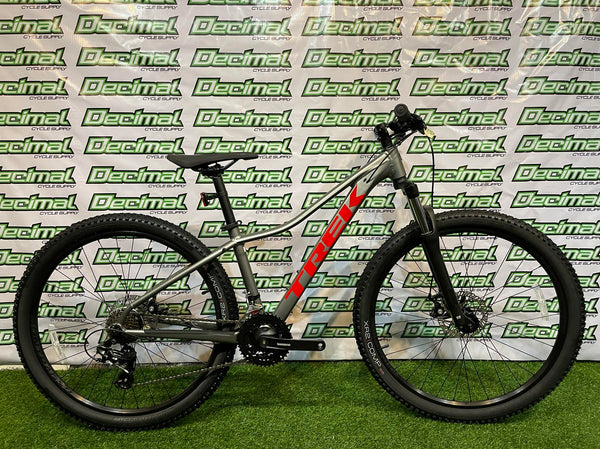

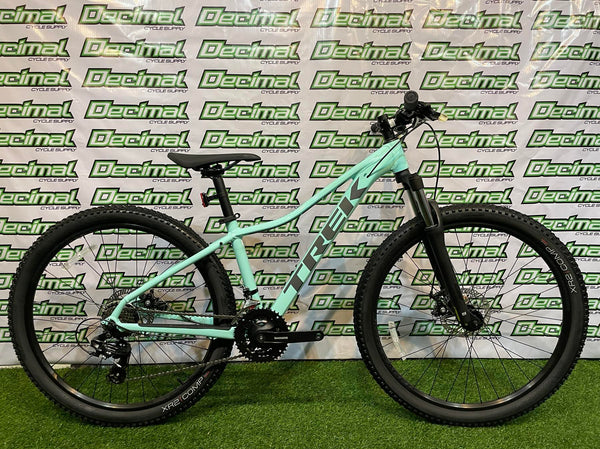

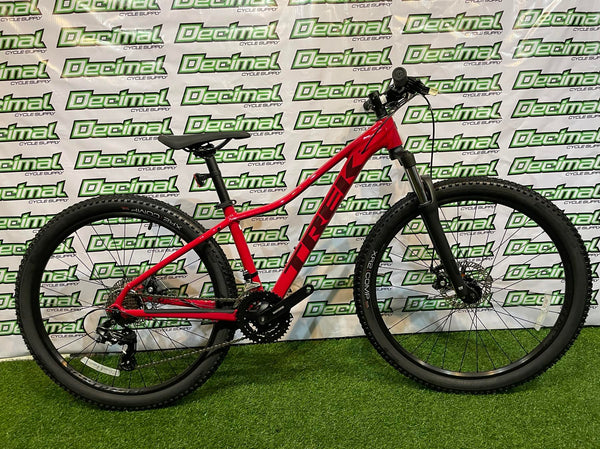

2022 Marlin 4
Regular price
₱24,490.00

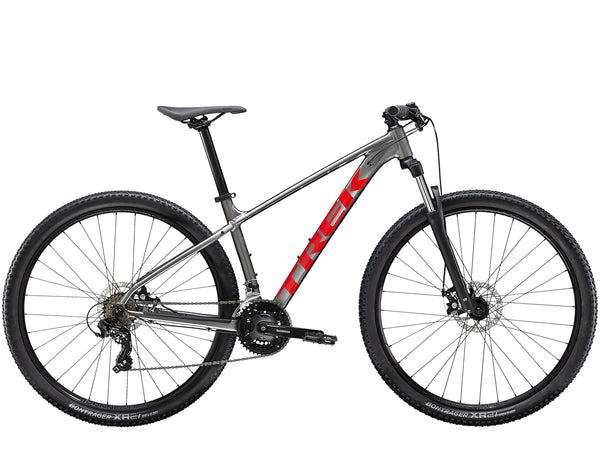

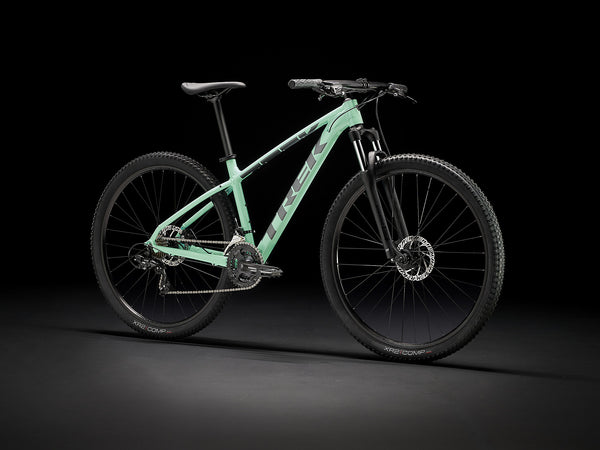

Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds, and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.
Product Specifications
Frameset

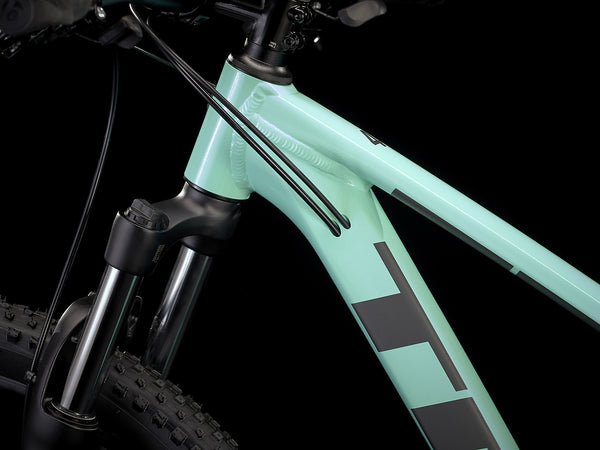

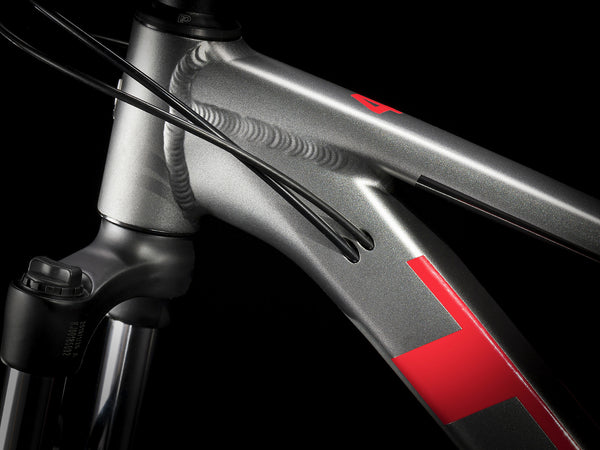

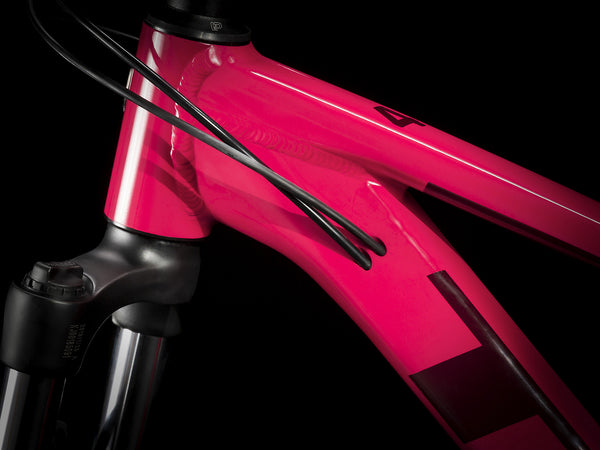

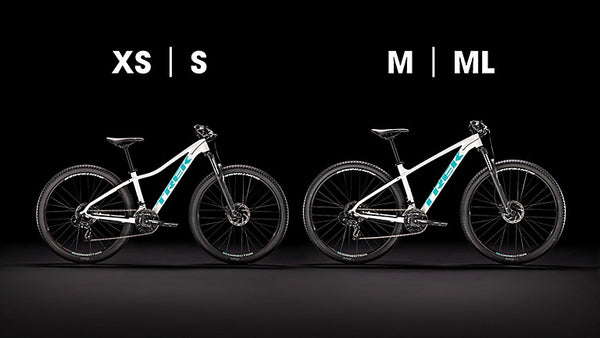

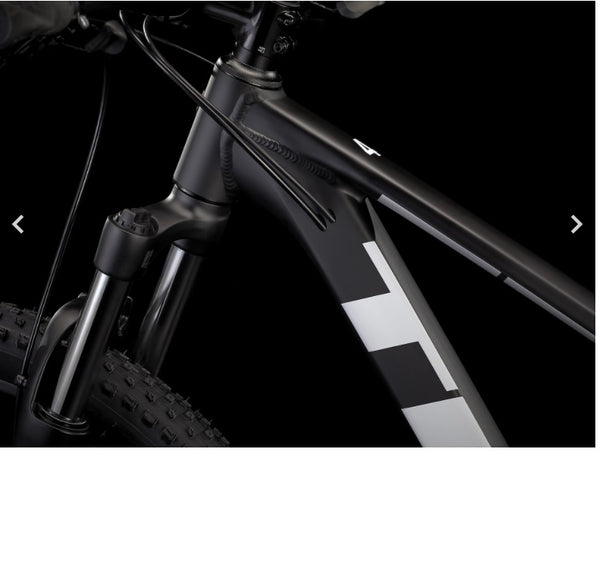

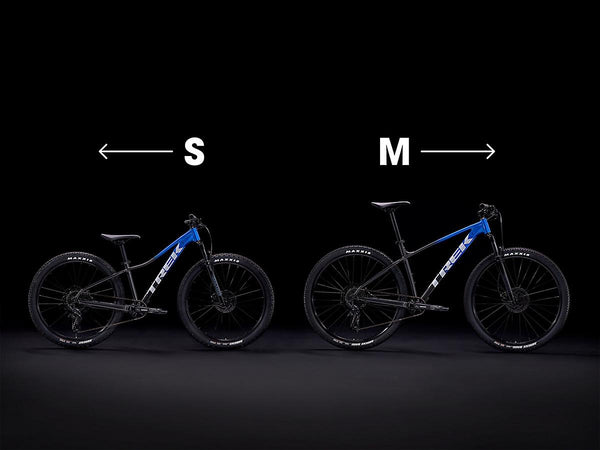

| Frame | Size: XS , S , M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|
| Size: XS , S Alpha Silver Aluminum, low standover, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|

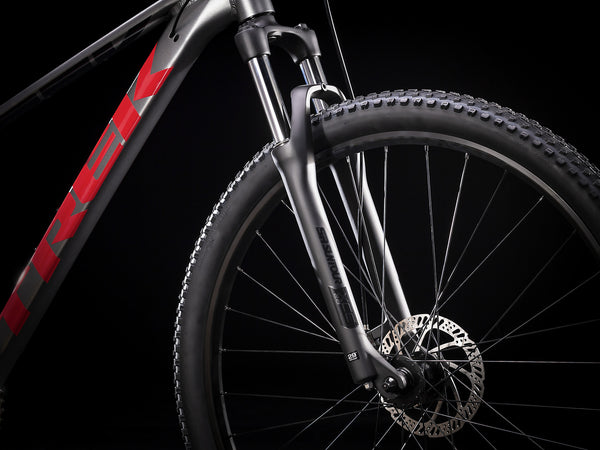

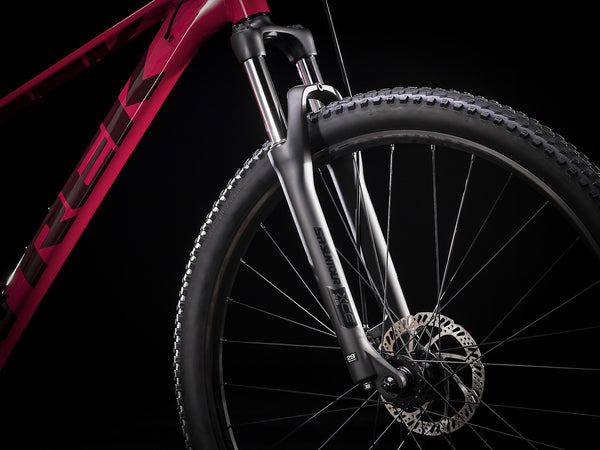

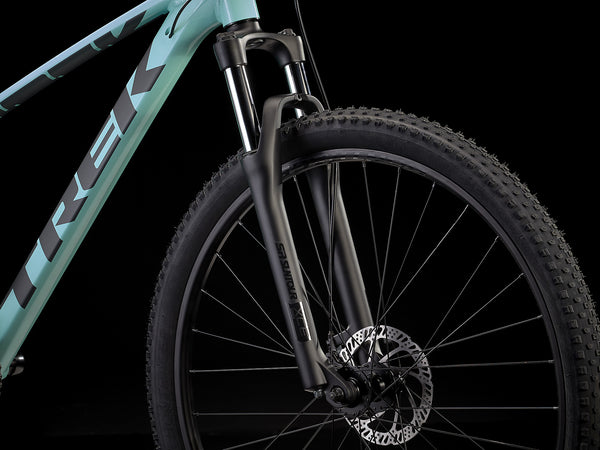

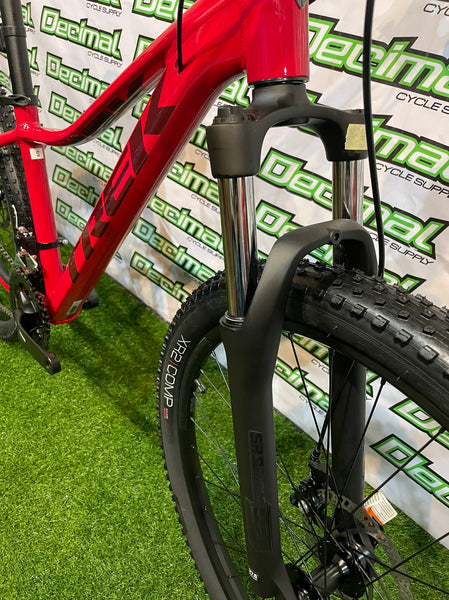

| Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
| Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Spokes | 14g stainless steel |
| Tire | Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' |
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' |
|
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00'' |
|
| Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
Drivetrain

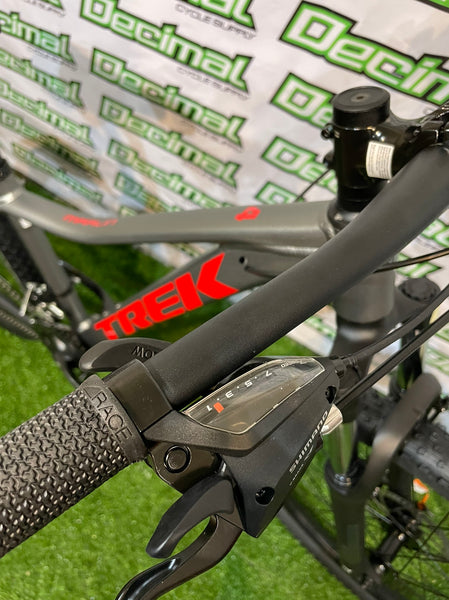

| Shifter | Shimano Altus EF500, 7 speed |
|---|---|
| Front derailleur | Shimano Tourney TY300, 34.9mm clamp, down swing, down pull |

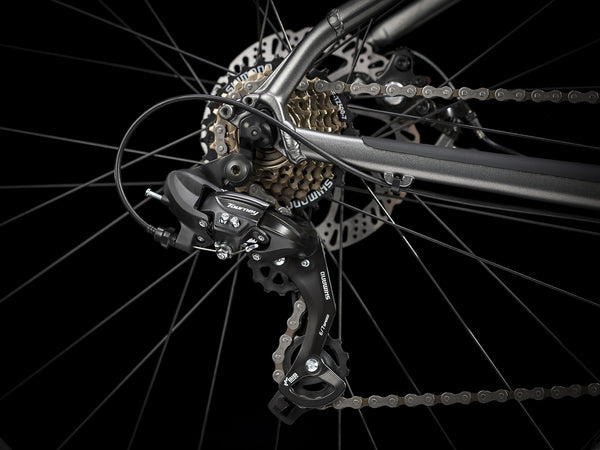

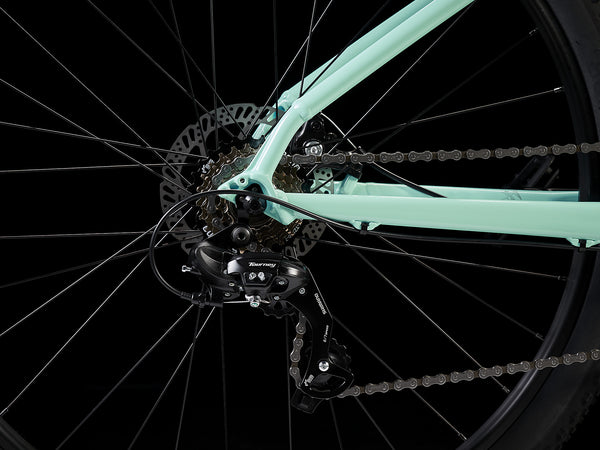

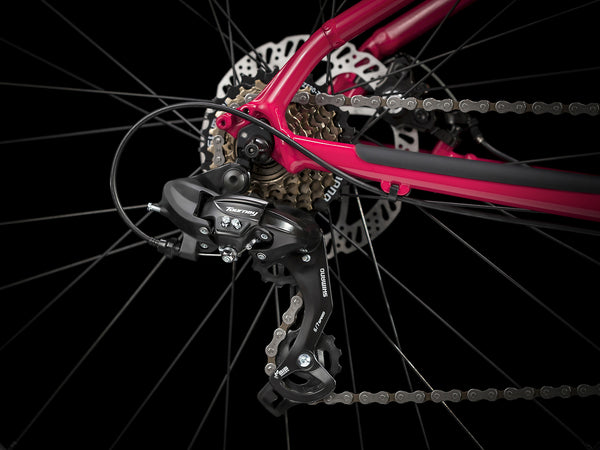

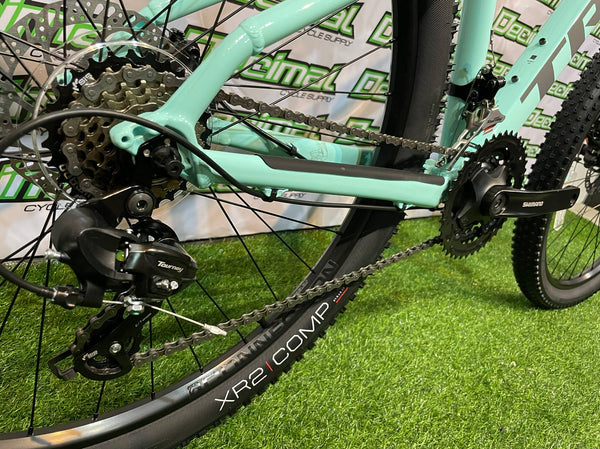

| Rear derailleur | Shimano Tourney TY300, long cage, 34T max cog |

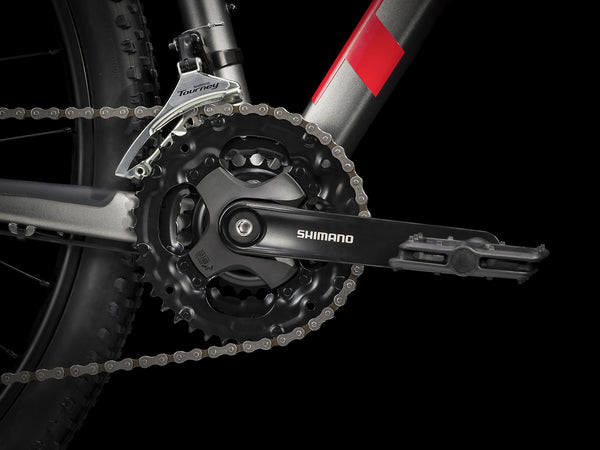

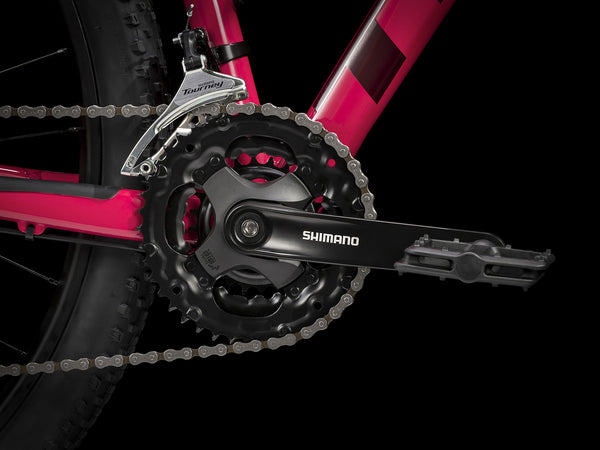

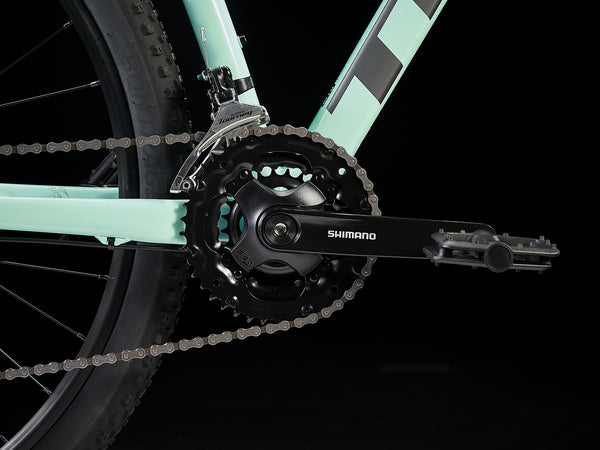

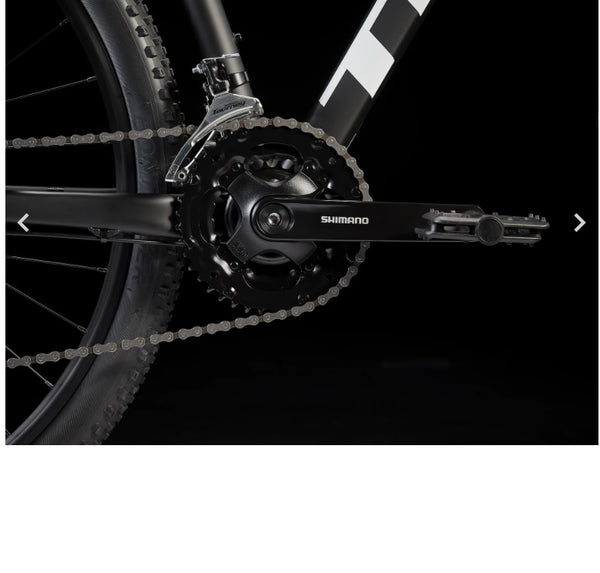

| Crank | Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170mm length |
| Size: ML , L , XL , XXL Shimano Tourney TY301, 42/34/24, 175mm length |
|
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano TZ500, 14-28, 7 speed |
| Chain | KMC Z7, 7 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| Seatpost | Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| Handlebar | Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Headset | Semi-integrated, 1-1/8'' |
| Brake | Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc, 160mm rotor |
| Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc |
