Trek

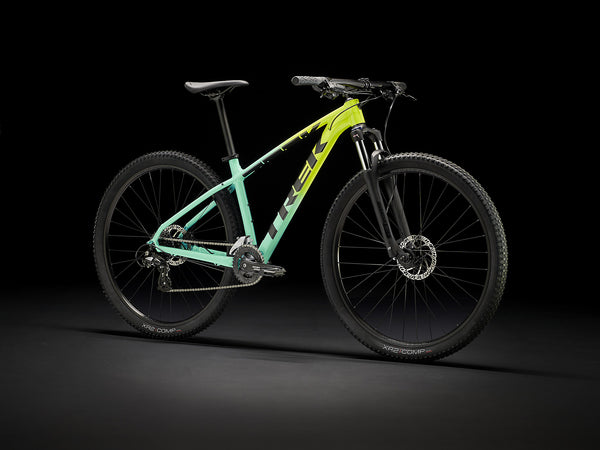

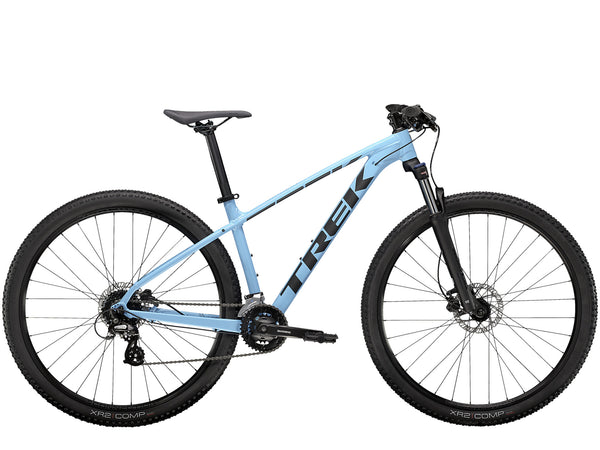

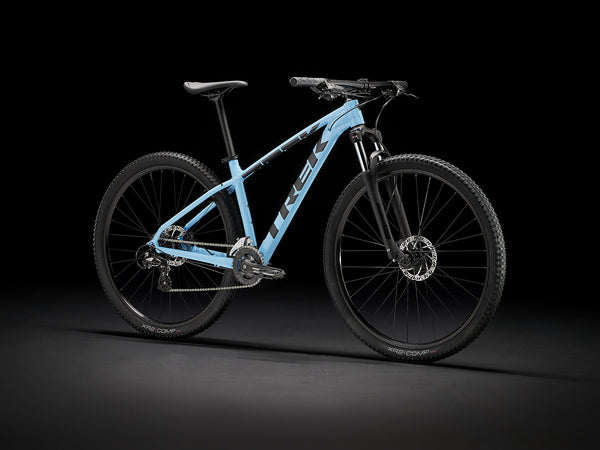

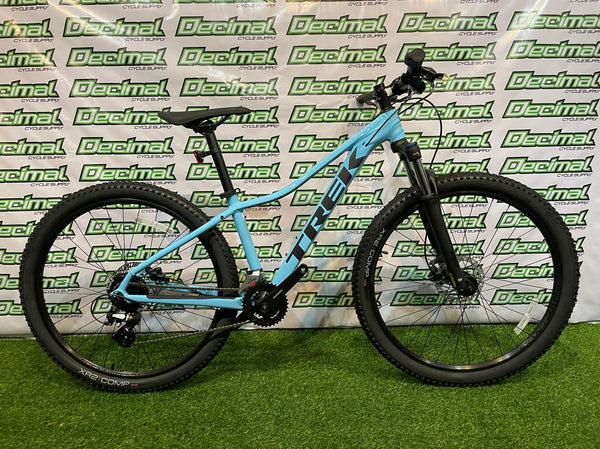

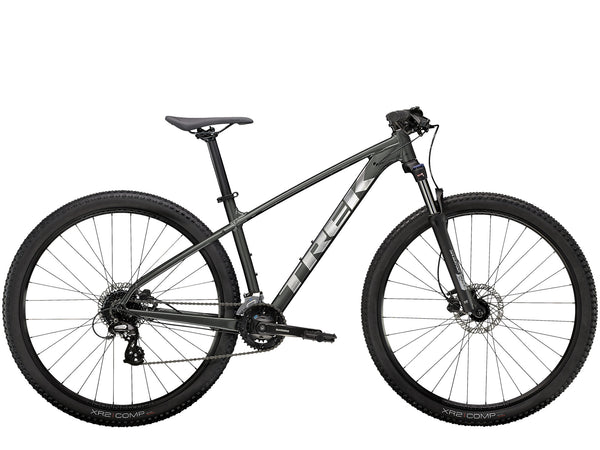

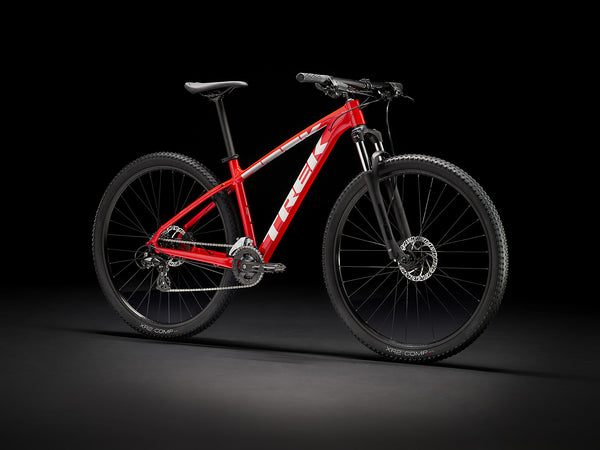

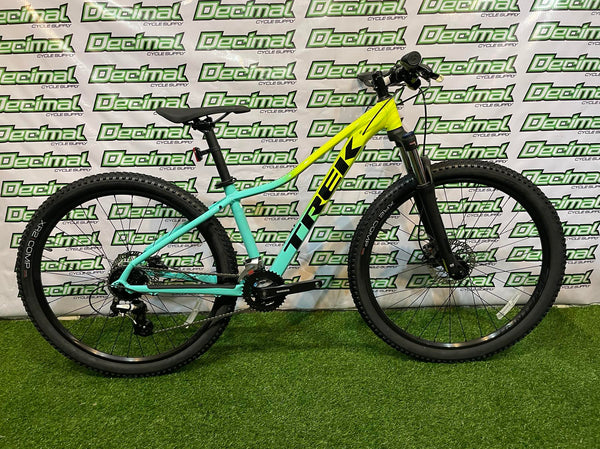

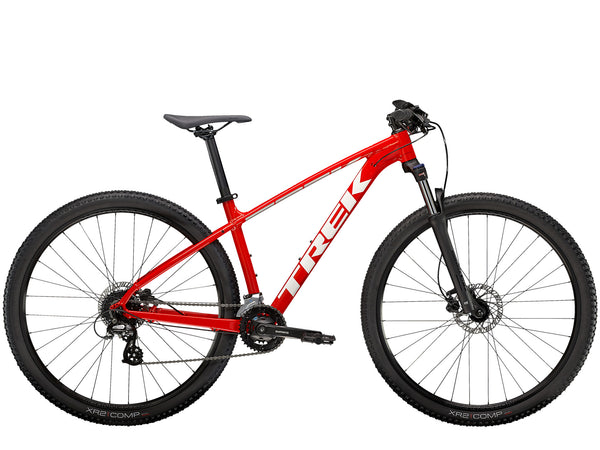

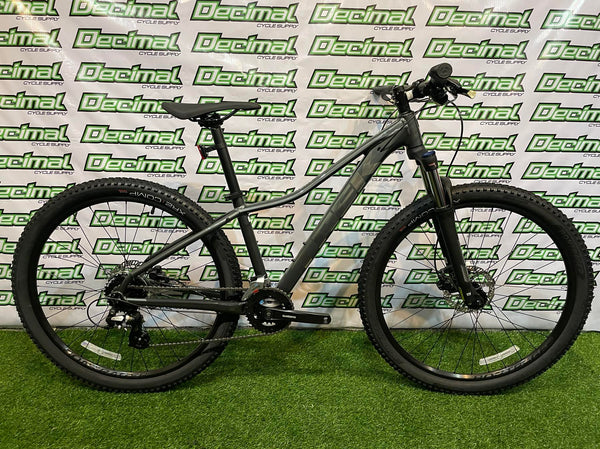

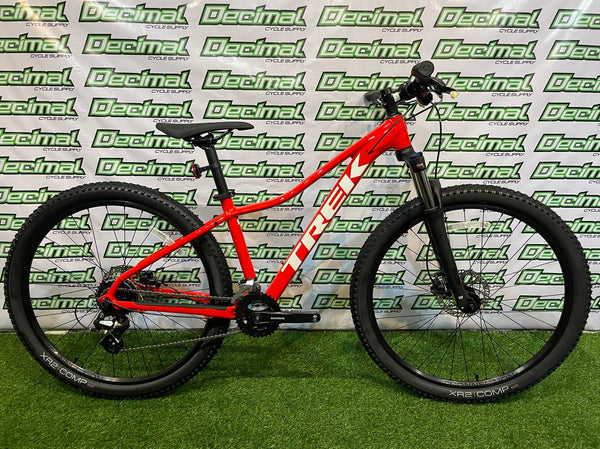

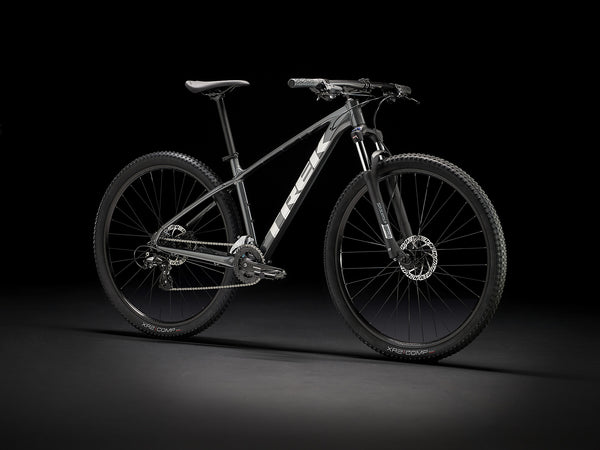

2022 Marlin 5
Regular price
₱28,990.00
Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Product Specifications
Frameset
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|

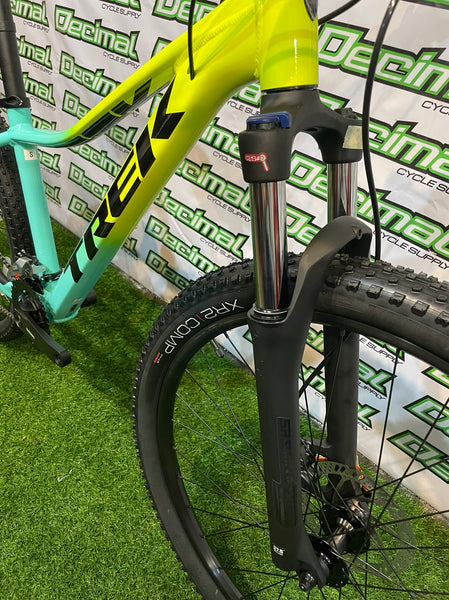

| Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel |
| Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
|
| Size: XS SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 80mm travel |
|
| Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
| Size: S , M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 100mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rim | Size: XXS Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve |
| Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
|
| Spokes | 14g stainless steel |
| Tire | Size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20'' |
| Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' |
|
| Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' |

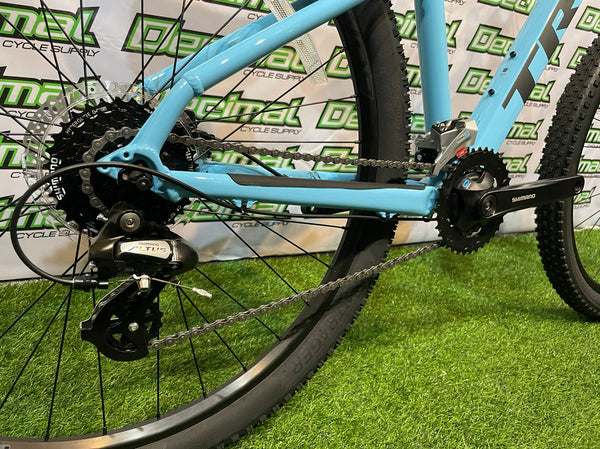

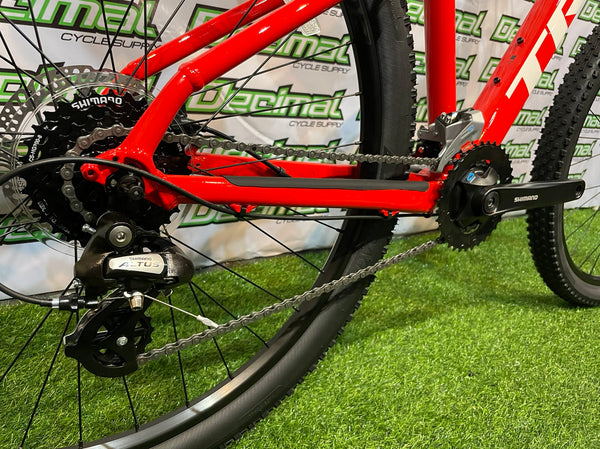

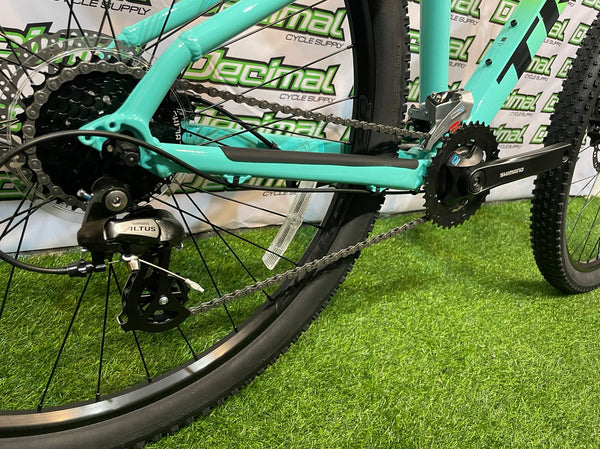

Drivetrain

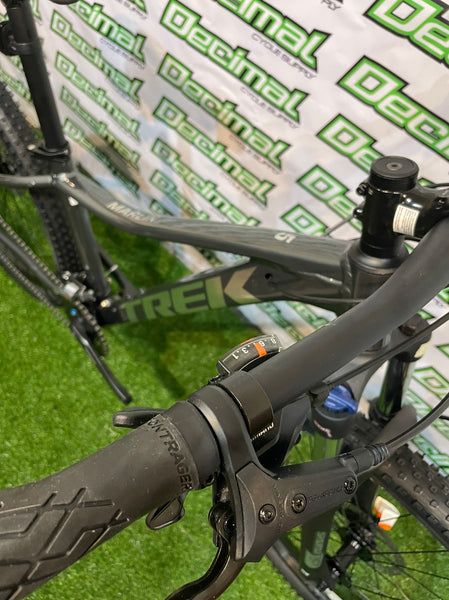

| Shifter | Shimano Altus M315, 8 speed |
|---|---|
| Front derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Altus M310 |
| Crank | Size: XXS Prowheel TM-CY10, 36/22, 160mm length |
| Size: XS , S , M Shimano M315, 36/22, 170mm length |
|
| Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length |
|
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano HG200, 12-32, 8 speed |
| Chain | KMC Z8.3, 8 speed |
| Pedal | VP-536 nylon platform |
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| Seatpost | Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
| Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| Handlebar | Size: XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length |
| Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
|
| Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Headset | Semi-integrated, 1-1/8'' |
| Brake | Size: XXS , XS , S Tektro HD-M276 hydraulic disc, short reach lever |
| Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
