Trek

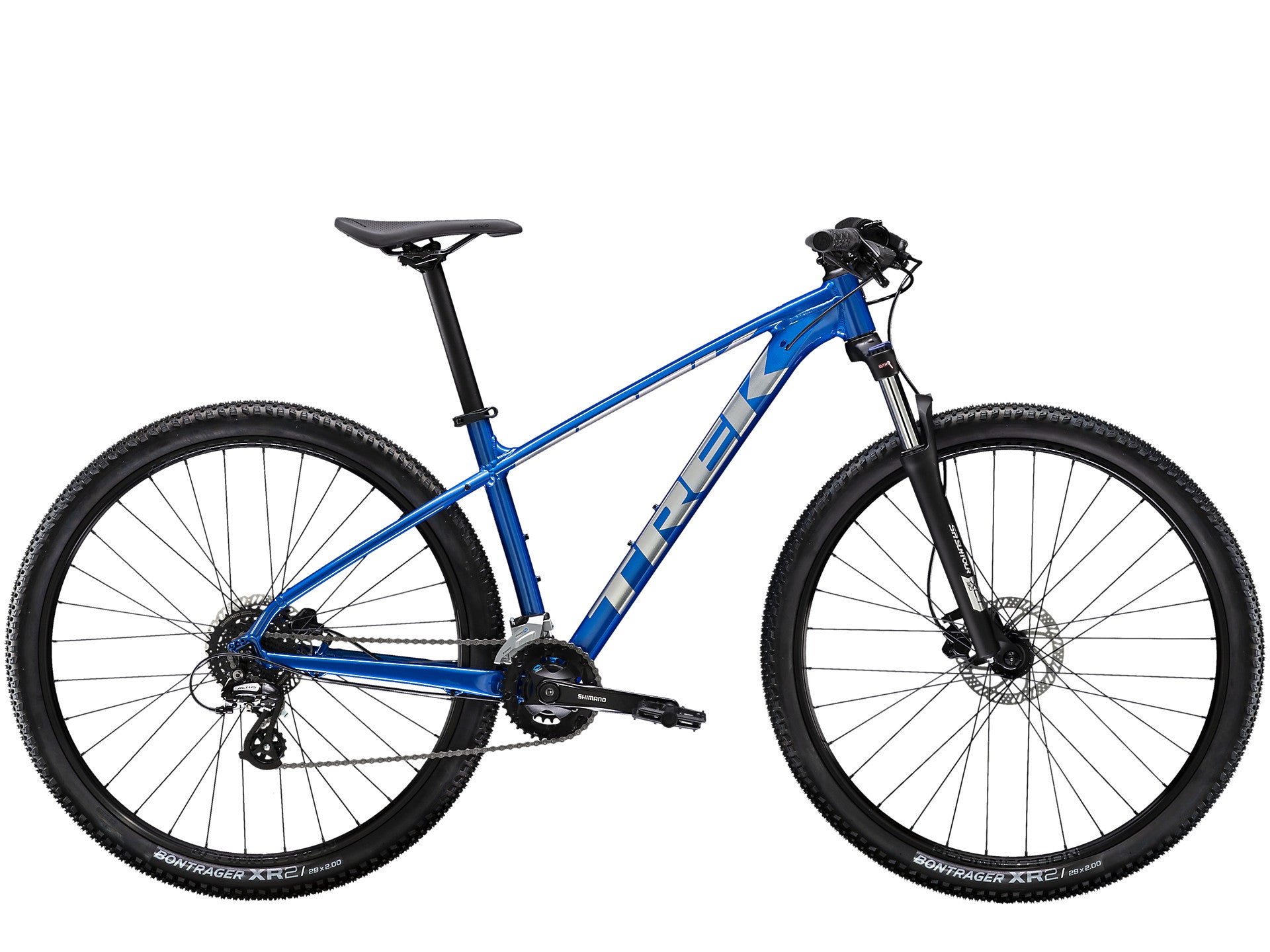

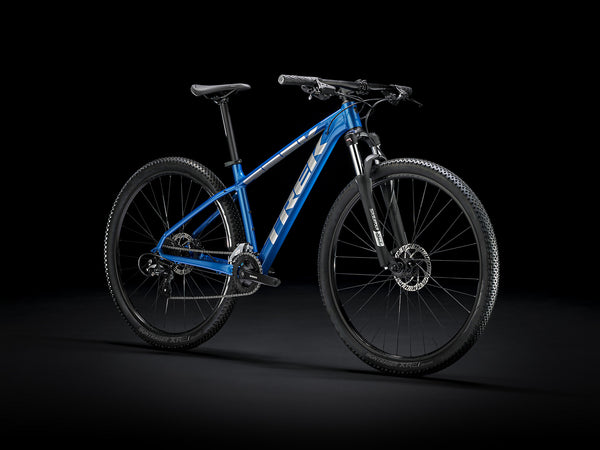

Marlin 6

₱29,990.00

Marlin 6 is a cross country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and smoother-shifting 2x8 drivetrain. It's made for mountain biking, but it's also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.

Product Specifications

Framsets

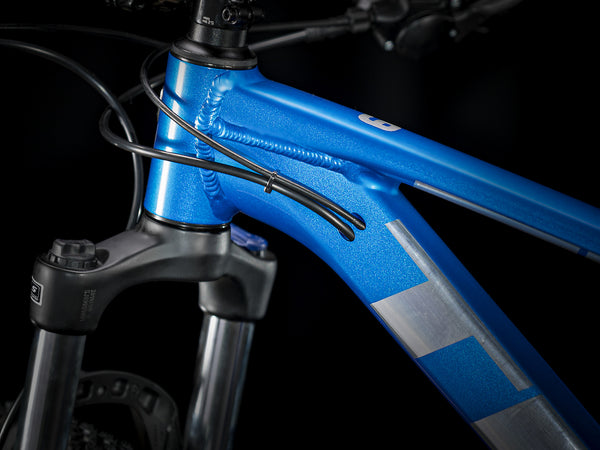

Frame	Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

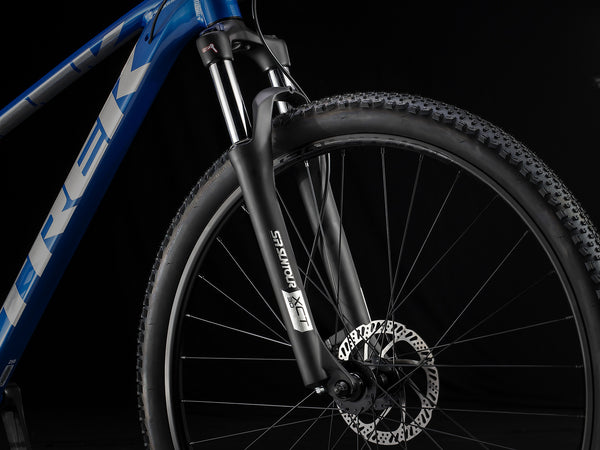

Fork	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes	14g stainless steel

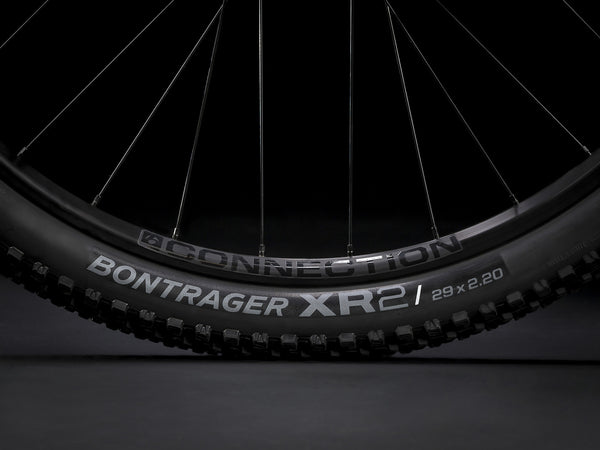

Tire	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Tire	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Max tire size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Drivetrain

Shifter	Shimano Altus M315, 8 speed
Front derailleur	Shimano Altus M315, 34.9mm clamp, top swing, dual pull

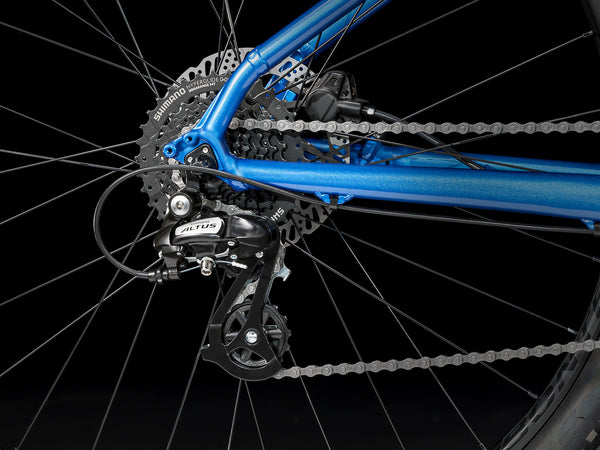

Rear derailleur	Shimano Altus M310

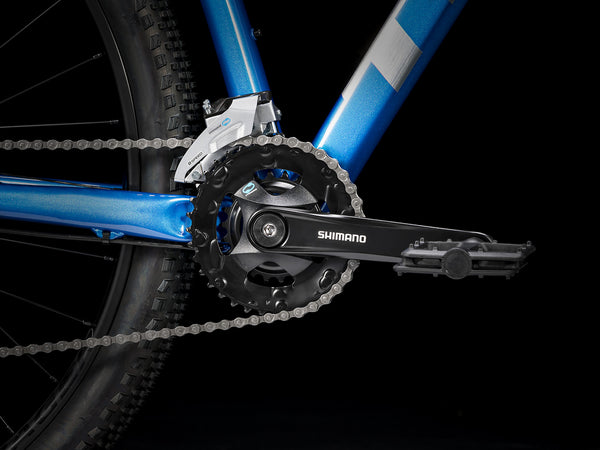

Crank	Size: XS , S , M Shimano M315, 36/22, 170mm length
Crank	Size: ML , L , XL , XXL Shimano M315, 36/22, 175mm length
Bottom bracket	VP BC73, 73mm, threaded cartridge
Cassette	Shimano HG31, 11-34, 8 speed
Chain	KMC Z8.3, 8 speed
Pedal	VP-536 nylon platform
Max chainring size	1x/2x: 34T, 3x: 42T

Components

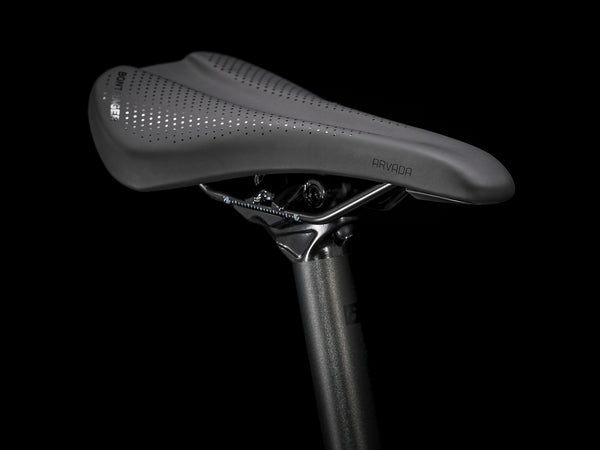

Saddle	Bontrager Arvada, steel rails, 138mm width
Seatpost	Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Seatpost	Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length

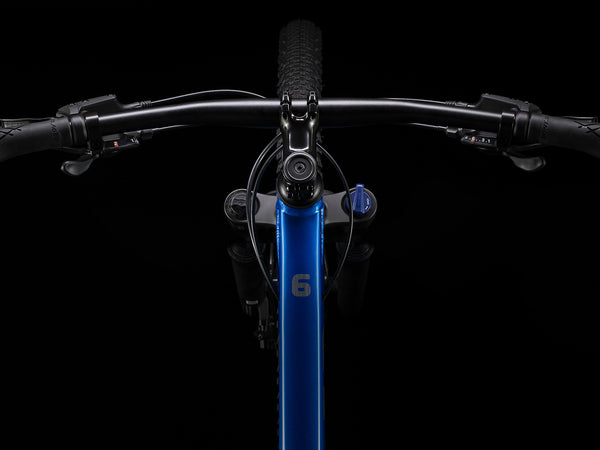

Handlebar	Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips	Bontrager XR Endurance Comp, lock-on
Stem	Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
	Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
	Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset	Semi-integrated, 1-1/8''

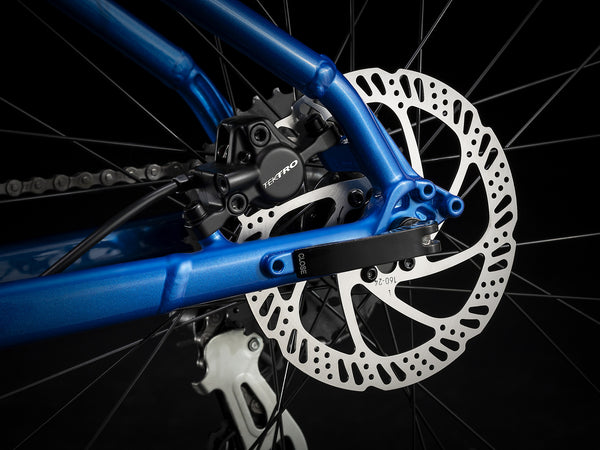

Brake	Size: XS , S Tektro HD-M276 hydraulic disc, short reach lever
Brake	Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc
